Download Vector Data

You can download vector layers in the OnPoint web-GIS application. Permission to download vector layers may vary for different user groups. You can select either GIS format or CAD format for the data to be downloaded.

To download vector data:

1.	In the Data Center section, click Download. The Data Center page appears.

2.	In the Download Vector Data section, click Download Now button. The map viewer appears with the Download Vector Data dialog box..

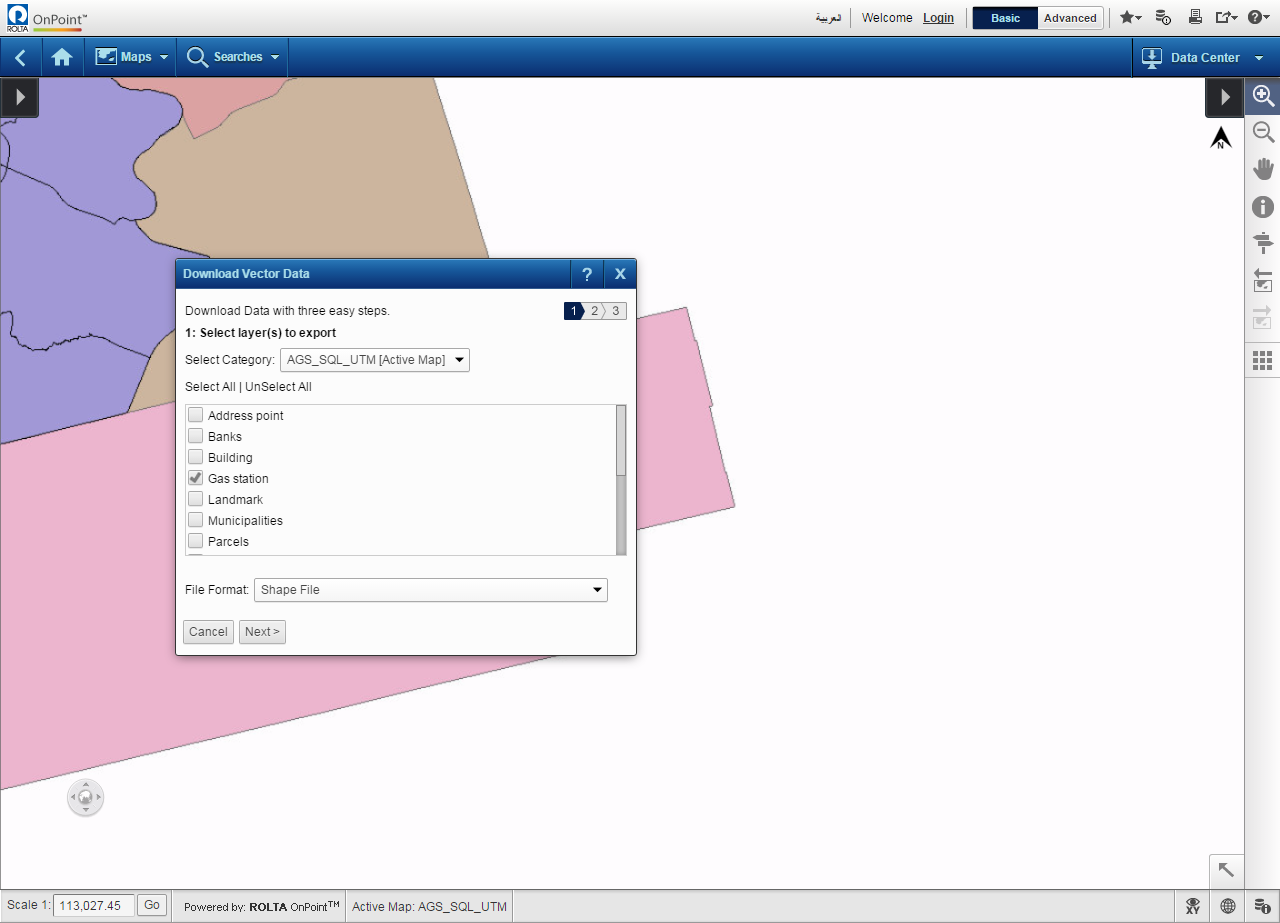

Figure 106

Map Viewer with the Download Vector Data dialog box

3.	From the Select Category drop-down list, select a layer category. A list of available layers of the selected category appears.

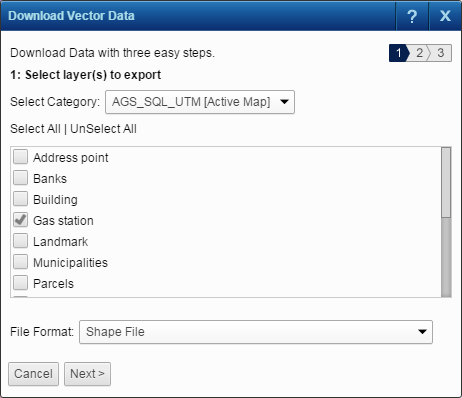

Figure 107

Available layers listed in the Download Vector Data dialog box

4.	Select the layers that you want to download from the list of layer names.

5.	(Optional) To select all layers to download, select Select All.

6.	From the File Format drop-down list, select one of the following formats for your download:

•	Shape file

•	Microstation

•

Auto CAD

•

KML

7.	Click Next. A list of options to select spatial extent appears.

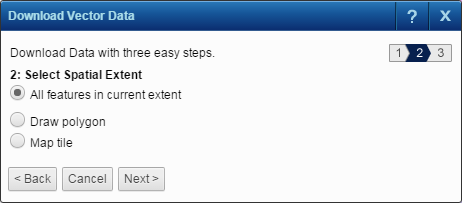

Figure 108

Options to select spatial extent in the Download Vector Data dialog box

8.	Select the spatial extent. The following options are available:

•	All features in current extent

Select this option and click Next to include the entire area visible in the map viewer.

•	Draw Polygon

Select this option and click Next to draw a polygon to define the area of interest.

•

Map Tile

Select this option and click Next to define area of interest by entering a map tile number or by clicking on the map to select a tile.

9.	Click Next.

10.	If the Map Tile option was selected in the earlier step, ignore further steps in this procedure. The available vector data appears in the Results window that you can export. Refer to Exporting selections.

11.	Enter a name for your download.

12.	Select a projection system.

13.	Click Export. A prompt appears and informs you about the progress of your request. The progress of your task is depicted in the My Jobs window.
