Adding local map data

You can add locally stored ESRI shape files, KML and GPX files (locally stored or accessible through a URL), or web map services (WMS) to the currently displayed map. You cannot upload more than one set of map data at a time to the map.

•	On the map viewer toolbar, click the Add Local Data icon . Select the tab that corresponds to the type of map data you want to upload to the map and see its description below.

•	If you have added local map data to the currently displayed map, you must remove it by clicking the Clear Local Data icon before being able to upload any more local map data.

Figure 53

Adding local map data to the currently displayed map

Shape

Select the Shape tab if you want to add an ESRI shape file to the currently displayed map.



Table 13

Shape file options—described

Field	Description
Shp File	Click Browse to locate the shape file (.shp file) that you want to view on the currently displayed map.
Shx File	Click Browse to locate the shape file index (.shx file) that accompanies the shape file you selected in Shp File.
Prj File (Optional)	If a .prj file accompanies the shape file, click Browse to locate and select it. If you specify a .prj file here, there is no need to select a coordinate system in File Projection.
Dbf File (Optional)	If a .dbf attribute data file accompanies the shape file you selected in Shp File, click Browse to locate and select it.

KML

Select either File to upload a KML file to the currently displayed map or HTTP to upload a KML file identified by a link to the currently displayed map. KML files are written in the Keyhole Markup Language, an XML-based language provided by Google for the display of map features and raster images in 2D and 3D.

File

The KML file you upload must have the .kml file name extension.

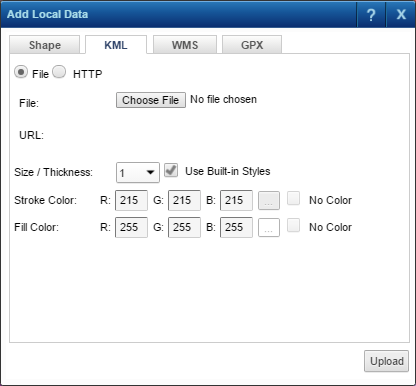

Figure 54

Uploading a KML file



Table 14

File options on the KML tab—described

Field	Description
File	Click Browse to locate the KML file (.kml) that you want to view on the currently displayed map.
Use Built-in Styles	If this option is selected, the symbol style settings in the KML file are given precedence, and Size/Thickness, Stroke Color and Fill Color are not available.
Size/Thickness	Select the size or thickness in pixels at which you want the map features to display. The default value is 1. Lines • Where the map features in the KML file are made up of lines, specify the thickness of the lines as a number of pixels. Polygons • Where the map features in the KML file are made up of polygons, specify the thickness of the polygon borders as a number of pixels. Points • Where the map features in the KML file are made up of points, specify the width of the point symbols as a number of pixels.
Stroke color	Specify the RGB color for the contour of the map features or click the Edit icon to select a color.
Fill color	Specify the RGB color for the fill of the map features or click the Edit icon to select a color.

HTTP

If you select the HTTP option to upload a KML file named in a URL, the KML file must have the .kml file name extension. See the example below.

http://YourServer/KMLFile.kml

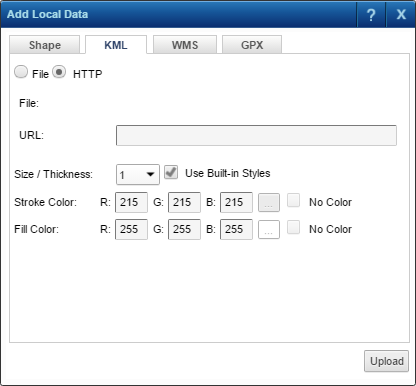

Figure 55

Uploading an HTTP link to a KML file



Table 15

HTML options on the KML tab—described

Field	Description
URL	Specify the URL (HTTP path) of the KML file you want to upload. The file name extension of the KML file must be .kml.
Use Built-in Styles	If this option is selected, the symbol style settings in the KML file are given precedence, and Size/Thickness, Stroke Color and Fill Color are not available.
Size/Thickness	Select the size or thickness of pixels at which you want the map features to display. The default value is 1. Lines • Where the map features in the KML file are lines, specify the thickness of the lines as a number of pixels. Polygons • Where the map features in the KML file are polygons, specify the thickness of the polygon borders as a number of pixels. Points • Where the map features in the KML file are points, specify the width of the point symbols as a number of pixels.
Stroke color	Specify the RGB color for the contour of the map features or click the Edit icon to select a color.
Fill color	Specify the RGB color for the fill of the map features or click the Edit icon to select a color.

WMS

You can upload a web map service (WMS) and view it on the currently displayed map. Either all layers or specific layers from the WMS can be uploaded to the current map.

•	In URL, specify the HTTP path of the WMS you want to view and click Connect. If the connection to the WMS is successful, the layers contained in the WMS appear in the Layers list box.

•	In Layers, by default all layers in the WMS are selected to be uploaded. Unselect those layers you do not want to upload. Selecting the Layer Name check box will select all unselected layers at the same time.

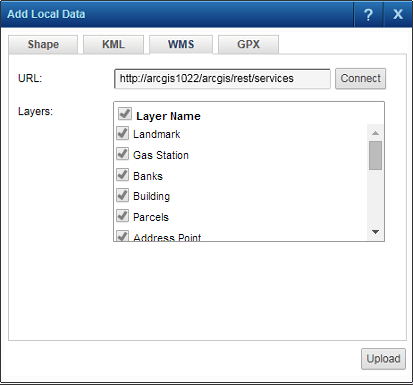

Figure 56

Uploading a web map service

•	Click Upload.

GPX

Select either File to upload a GPS Exchange Format (GPX) file to the currently displayed map or HTTP to upload a GPX file identified by a link to the currently displayed map. GPX files are in XML data format and, is used for sharing and exchanging GPS data between different users and programs.

File

If you select the File option, click Browse to locate the GPX file that you want to view on the currently displayed map. The GPX file you upload must have the .gpx file name extension.

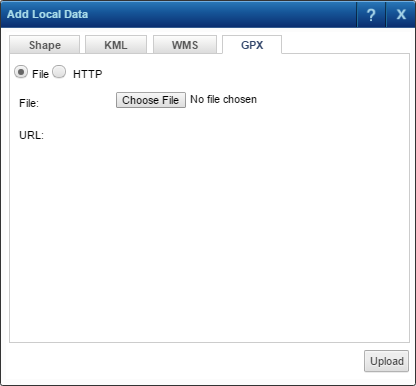

Figure 57

Uploading a GPX file

HTTP

If you select the HTTP option, specify the URL (HTTP path) of the GPX file you want to upload. The file name extension of the KML file must be .gpx. See the example below.

http://YourServer/GPXFile.gpx

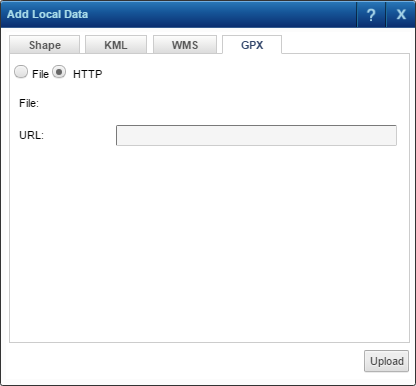

Figure 58

Uploading an HTTP link to a GPX file
