Viewing the Map in 3D mode

If configured, you can view the map in 3D format in the OnPoint web-GIS application.

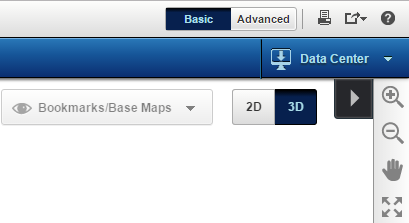

1.	In the top right corner of the map viewer, click 3D.



Figure 8

3D View

2.	If the map is not visible:

•	In the Map Tools pane, click More Tools, and select Full View .

3D Map Tools

In the 3D mode, the Map Tools pane provides map tools for navigating and viewing information on a 3D map. As these tools in the pane are configurable by the agency or organization providing the map information, you may not be able to view all of the following 3D map tools..

Table 7

3D Map Tools

Map Tool	Name	Purpose
	Zoom In	Zooms in the map either by clicking the map or by dragging the tool across the map to draw a shape. The map is then zoomed in to the area defined within that shape.
	Zoom Out	Zooms out the current map.
	Drag Pan	Pans the map as you drag the tool across the map.
	Full View	Helps you to view the full extent of the 3D map.
	3D Navigation	Helps to navigate the 3D map.
	Identify	Displays information about a feature. Click the Identify tool and then click an area on the map. Select the feature type that you want to view and all information associated with that feature is displayed.
	Markup	Starts the Markup tools.
	Measure	Determine distance by drawing a line or determine area by drawing a polygon, circle or rectangle.
	Measure	Determines distance between starting point and end point.
	Search by Coordinates	Searches map features using coordinates.
	Texture	Switches the map to textured view.
	Point Cloud	Switches the map to point cloud view.
	Wireframe	Switches the map to wireframe view.
	Flood Analysis	Helps to identify the effects of flood at different water levels on an area.
	Line of Sight	Helps to view the line of sight between source and target.
	Area of Sight	Helps to view the area of sight.
	Highest Point	Helps to highest point in the selected area of interest.
	Help	Opens the online help of the OnPoint web-GIS application.
